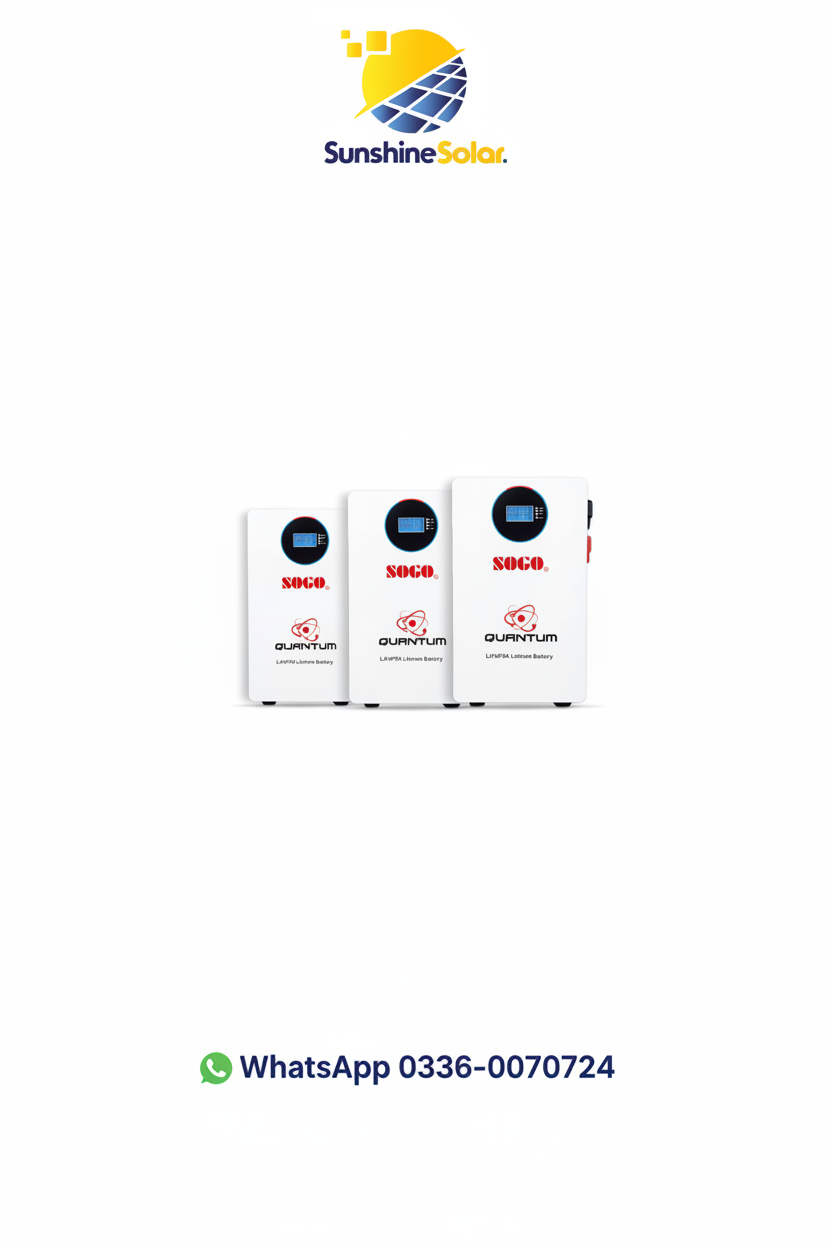

Sogo Quantum LiFePO4 Battery 51.2V 100Ah 5.12kWh

Premium 51.2V Solar Storage — Sogo Quantum LiFePO4 Battery 100Ah

The Sogo Quantum LiFePO4 Lithium Battery 51.2V 100Ah 5.12kWh is a next-generation EU/US-type wall-mounted and floor-standing energy storage solution engineered for hybrid solar inverters and off-grid power systems in Pakistan. With brand-new LiFePO4 cells, a built-in Smart BMS, and 6,000+ cycle life backed by a 5-year warranty, the Sogo Quantum delivers unmatched safety, longevity, and performance for your solar investment.

Key Features

• 51.2V / 100Ah / 5.12kWh — high-capacity storage for 48V solar systems
• Brand-New LiFePO4 Cells — ultra-safe chemistry, no thermal runaway risk
• 6,000+ Cycle Life — decades of reliable energy storage
• 5-Year File Design Warranty — long-term peace of mind
• Smart BMS — matches well with solar systems; overcharge, over-discharge, short circuit & temperature protection
• Wall-Mount + Floor Stand Installation — flexible installation options
• Can Connect 13 in Parallel — scalable up to 66.56kWh system capacity
• High Protection Rating — IP20 rated enclosure
• CAN & RS485 Communication — compatible with major hybrid inverters

Technical Specifications

• Nominal Voltage: 51.2V | Capacity: 100Ah | Energy: 5.12kWh
• Usable Energy: 9,216Wh (at 90% DoD) | Voltage Window: 44.8 ∼ 58.4V
• Float Charge Voltage: 56.0V | Low DC Cut-off: 46.4V
• Max Continuous Discharge: 100A | Max Pulse Discharge: 150A (15s)
• Max Continuous Charge: 50A | Cycle Life: >6,000 cycles
• Communication: CAN, RS485 | Protection: IP20
• Dimensions (product): 640×390×178mm | Weight: 50.3kg
• Operating Temp: -10°C ∼ +50°C | Storage Temp: -20°C ∼ 35°C
• Safety Standard: UN38.3, AS4025

Scale your solar storage with confidence. Order the Sogo Quantum 51.2V 100Ah Battery today from Sunshine Solar.
