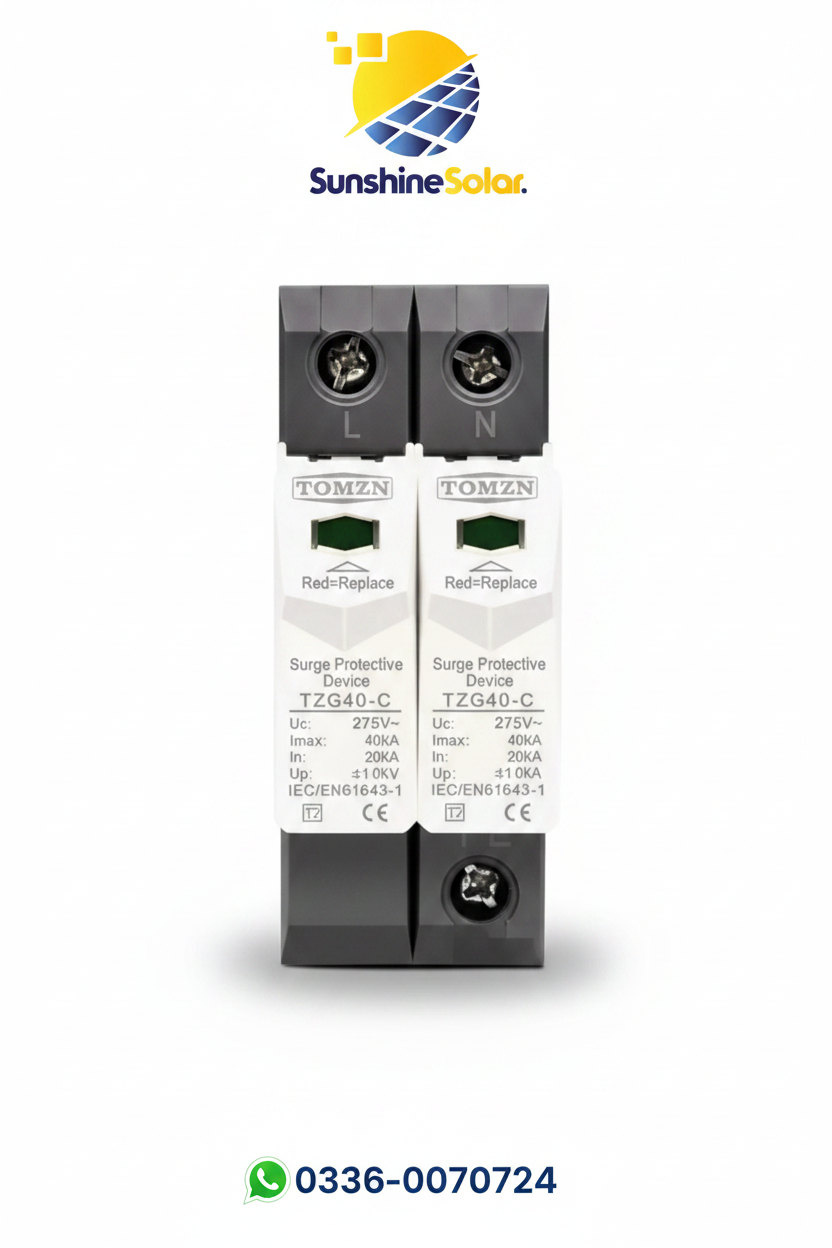

Tomzn AC SPD 2-Pole Surge Protective Device (TZG40-C)

Protect Your Solar System — Tomzn AC SPD 2-Pole TZG40-C

The Tomzn TZG40-C AC SPD 2-Pole Surge Protective Device is an essential component for any solar energy system, protecting your inverter, batteries, and appliances from dangerous voltage surges and lightning strikes. CE certified and IEC/EN61643-1 compliant, it provides reliable surge protection for single-phase AC systems in Pakistan.

Key Features

• 2-Pole Design — protects L and N lines in single-phase AC systems
• 275V Rated Voltage (Uc) — compatible with standard Pakistani grid voltage
• 40kA Maximum Discharge Current (Imax) — handles large surge events
• 20kA Nominal Discharge Current (In) — reliable everyday surge protection
• ≤1.5kV Protection Level (Up) — keeps equipment safe from voltage spikes
• Red=Replace Indicator — clear visual status for easy maintenance
• CE Certified — meets IEC/EN61643-1 standards
• DIN Rail Mount — easy installation in distribution boards

Technical Specs

• Model: TZG40-C | Poles: 2 | Uc: 275V | Imax: 40kA | In: 20kA | Up: ≤1.5kV
• Standard: IEC/EN61643-1 | Certification: CE | Brand: Tomzn

Safeguard your solar investment from surges and lightning. Order the Tomzn AC SPD 2-Pole today.
