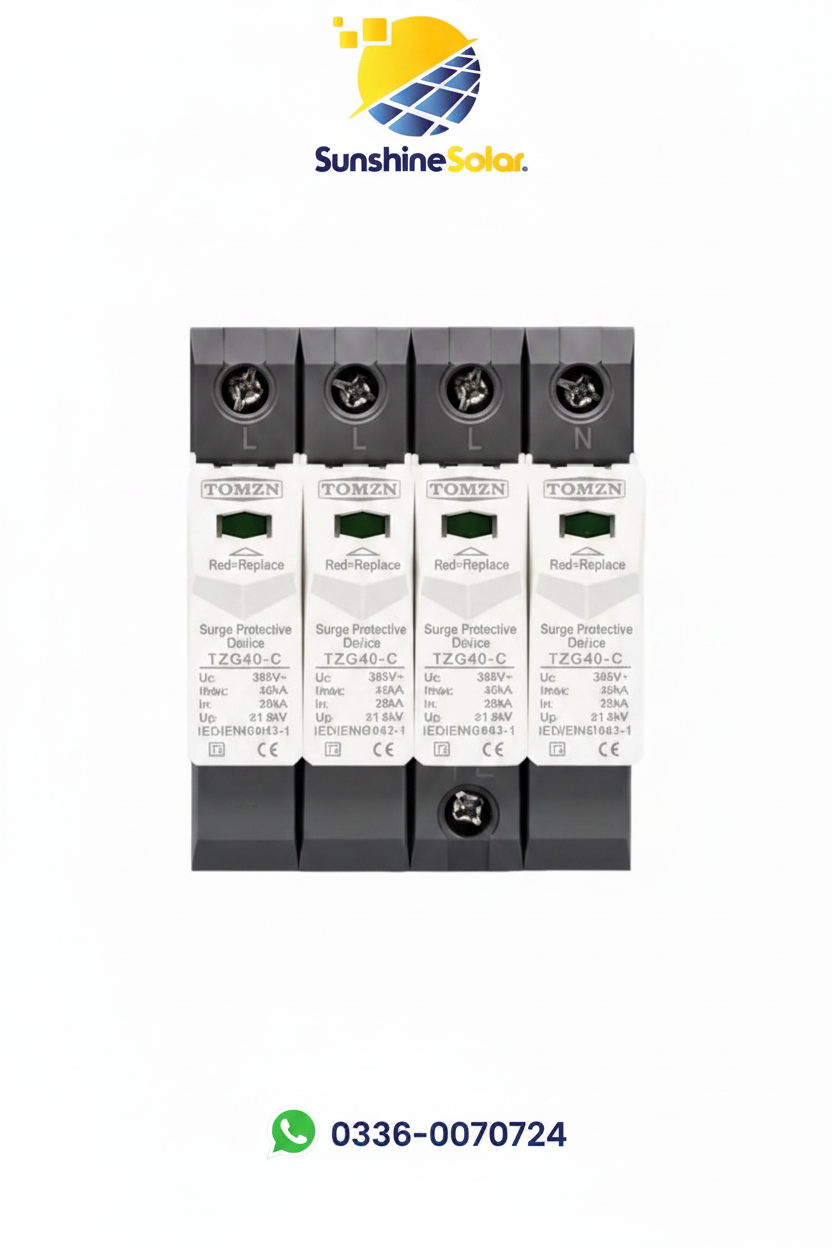

Tomzn AC SPD 4-Pole Surge Protective Device (TZG40-C)

Complete 3-Phase Surge Protection — Tomzn AC SPD 4-Pole TZG40-C

The Tomzn TZG40-C AC SPD 4-Pole Surge Protective Device is the ultimate surge protection solution for 3-phase solar energy systems. With four modules covering L, L, L, and N lines, it provides comprehensive protection for your inverter, batteries, and appliances from dangerous voltage surges and lightning strikes across all phases. CE certified and IEC/EN61643-1 compliant, it's the professional choice for large solar installations in Pakistan.

Key Features

• 4-Pole Design (L+L+L+N) — complete 3-phase + neutral surge protection
• 385V Rated Voltage (Uc) — compatible with 3-phase Pakistani grid voltage
• 40kA Maximum Discharge Current (Imax) — handles large surge events
• 20kA Nominal Discharge Current (In) — reliable everyday surge protection
• ≤1.5kV Protection Level (Up) — keeps equipment safe from voltage spikes
• Red=Replace Indicator — clear visual status on each module for easy maintenance
• CE Certified — meets IEC/EN61643-1 standards
• DIN Rail Mount — easy installation in distribution boards

Technical Specs

• Model: TZG40-C | Poles: 4 (L+L+L+N) | Uc: 385V | Imax: 40kA | In: 20kA | Up: ≤1.5kV
• Standard: IEC/EN61643-1 | Certification: CE | Brand: Tomzn

Protect your entire 3-phase solar system from surges and lightning. Order the Tomzn AC SPD 4-Pole today.
